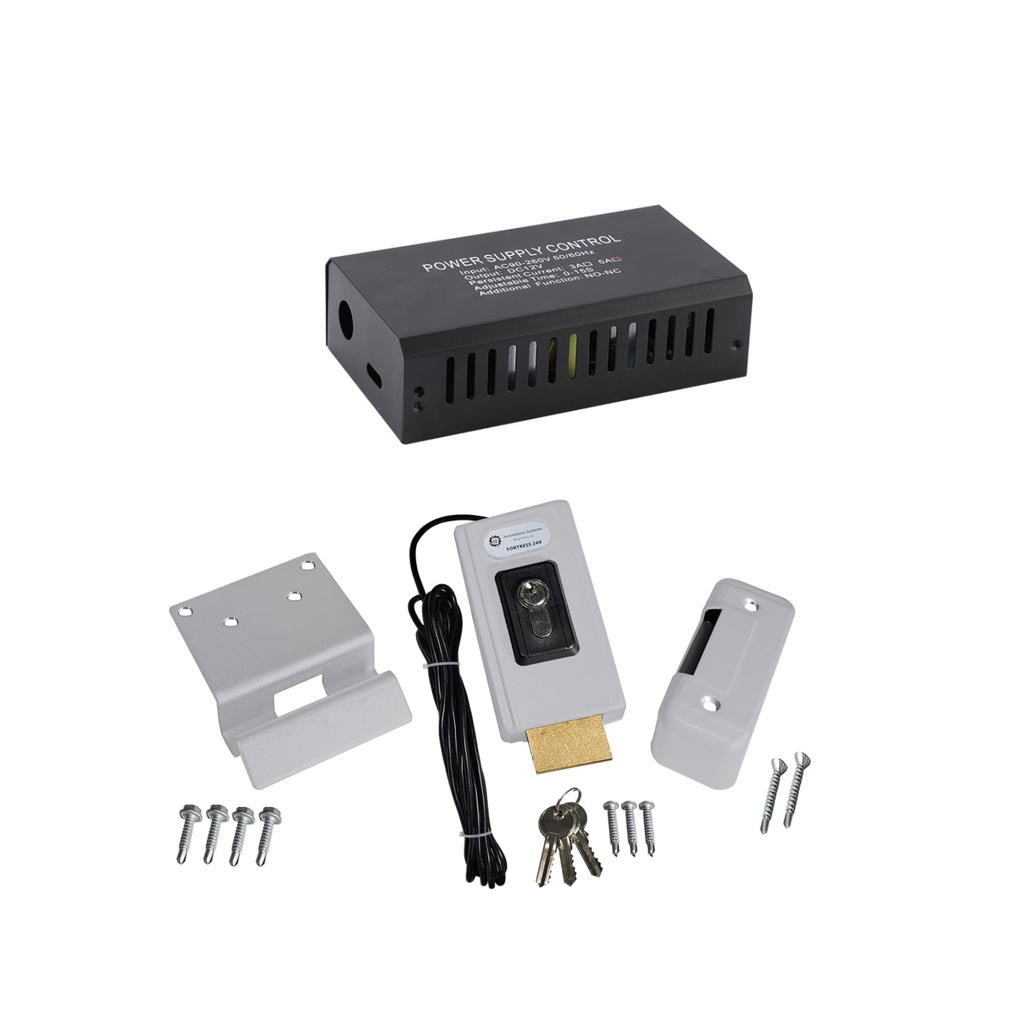

Electric lock and Access Control Power Supply Combo
Internal Reference:
FORTRESS EL+ LCPS-12V-3A
This lock control combo allows for connection into any intercom system with a gate release feature and is capable of supplying power on to unlock (fail secure method) to higher current locks such as the Fortress EL.
This lock control power supply only is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating. The lock itself however is for outdoor use.
Fortress EL Automatic Gate Lock
Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
Key Features
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation
Fortress EL Specifications
| Power | 12-24V DC |
| Consumption | 15VA |
| Lock Body Size | 124x67x35mm |
| Mounting Size | Vertical OR Horizontal |
| Cable Length | 7 Meters |
Lock Control Power Supply
Automatic lock control power supply suitable for electric locks, magnetic locks, electric bolts, access control keypads, em card readers and alike. The lock control power supply can power devices continuously for a maximum of 1.5 Amps and with an allowance for a spike up to 3A (electric bolts and fail secure solenoid locks).
Suitable for integration with intercom systems, access control systems, exit buttons and other devices with a voltage free relay contact into the exit button input OR devices with a momentary voltage output of 5-30V DC into the control input.
This lock control power supply is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating.
Access Control Power Supply Specifications
| Input Voltage | 90-260V AC |
| Output Voltage | 12V DC |
| Accessories Constant Voltage Terminal | 12V DC |
| Max Current | 3A Momentary, 1.5A Continuous TOTAL |
| Supports Battery Backup | Yes, 12V DC |
| Lock Types | Fail Secure(NO)/Fail Safe (NC) |
| Exit Button Suport | Yes, Voltage Free N/O Momentary Contact |
| Exit Button Timing | Adjustable, 1-15 Seconds |
| Control Input | Yes, 5-30V DC Polarized |
| Operating Temperature | -10°-60°C |
