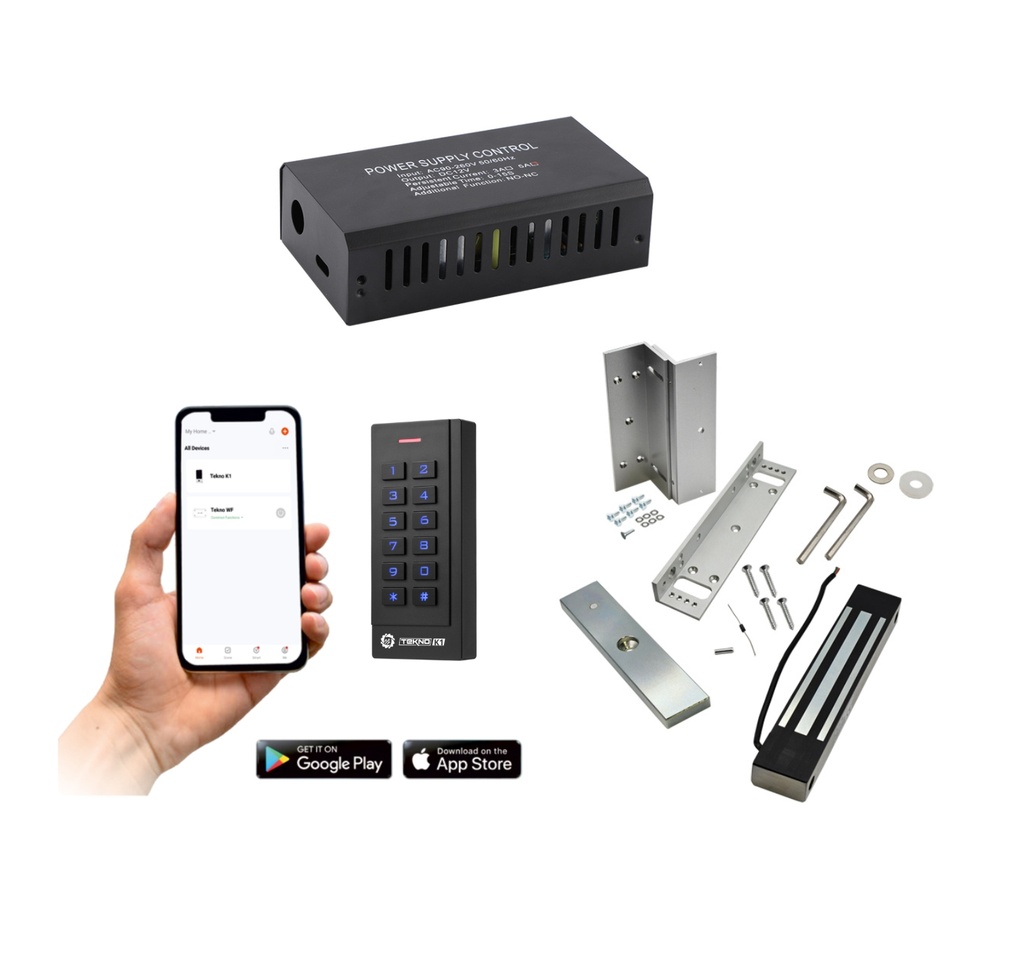

Mobile APP Keypad Pin Code with Magnetic lock and Access Control Power Supply Combo

$ 405.00 405.0 AUD $ 405.00 Tax Included

This combination does not exist.

1 Year Warranty

Brand: Alpha Automation

Terms and Conditions
Shipping:
Same Business Days before 10AM

Internal Reference: FORTRESS ML+K1+LCPS-12V-3A

This lock control power supply only is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating. The lock itself however is for outdoor use.

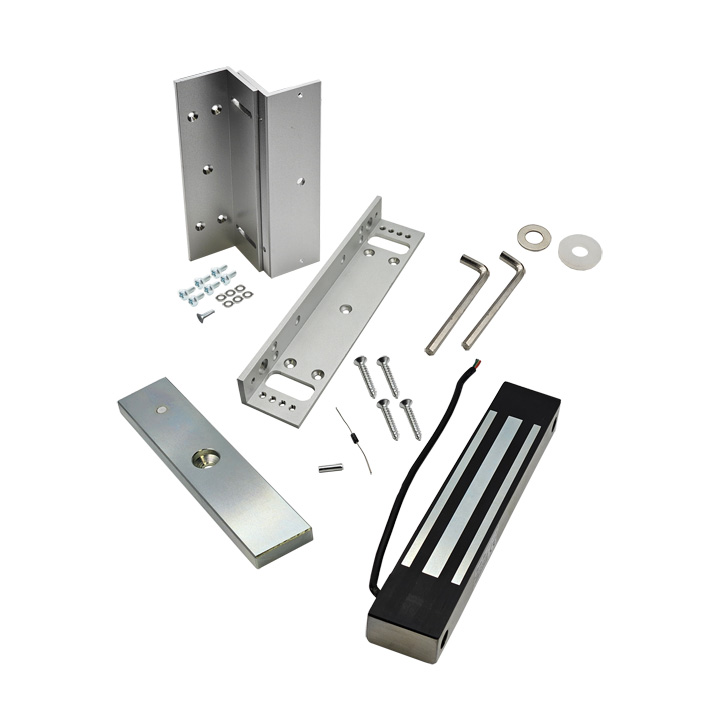

280KG Waterproof Magnetic Lock (12/24V DC)

The Fortress ML Magnetic lock has a hold ability of 280KG when energized, it can be powered by 12V DC or 24V DC. Magnetic locks unlike solenoid based locks will released when commanded to unlock by the control system even whilst under load making a magnetic lock an excellent option for most applications.

✓ Suitable for Small and Large Gates
✓ Suitable for Single and Double Gates
✓ Provided with Both an L bracket for magnetic lock mounting and an adjustable Z bracket for the armature plate alignment

Magnetic Lock Specifications

Operating Voltage	12V/24V DC
Consuption	450mA(12V)/225mA(24V)
Body Size	222x42x26mm
Armature Plate Size	180x38x12mm

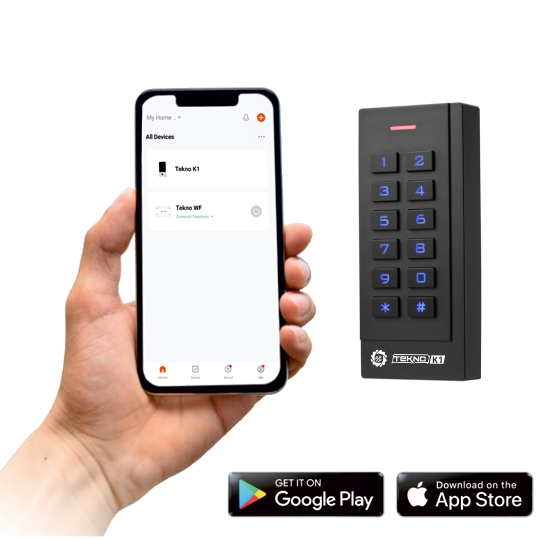

Tekno K1 Weatherproof Wired Keypad

APP Control entry keypad mobile phone Automatic gate and garage door

The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

General Mobile APP users can also be managed in via the app (add/delete) if and when required.

Key Features

✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what's supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

Lock Control Power Supply

Automatic lock control power supply suitable for electric locks, magnetic locks, electric bolts, access control keypads, em card readers and alike. The lock control power supply can power devices continuously for a maximum of 1.5 Amps and with an allowance for a spike up to 3A (electric bolts and fail secure solenoid locks). Suitable for integration with intercom systems, access control systems, exit buttons and other devices with a voltage free relay contact into the exit button input OR devices with a momentary voltage output of 5-30V DC into the control input.

This lock control power supply is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating.

Access Control Power Supply Specifications

Input Voltage	90-260V AC
Output Voltage	12V DC
Accessories Constant Voltage Terminal	12V DC
Max Current	3A Momentary, 1.5A Continuous TOTAL
Supports Battery Backup	Yes, 12V DC
Lock Types	Fail Secure(NO)/Fail Safe (NC)
Exit Button Suport	Yes, Voltage Free N/O Momentary Contact
Exit Button Timing	Adjustable, 1-15 Seconds
Control Input	Yes, 5-30V DC Polarized
Operating Temperature	-10°-60°C
