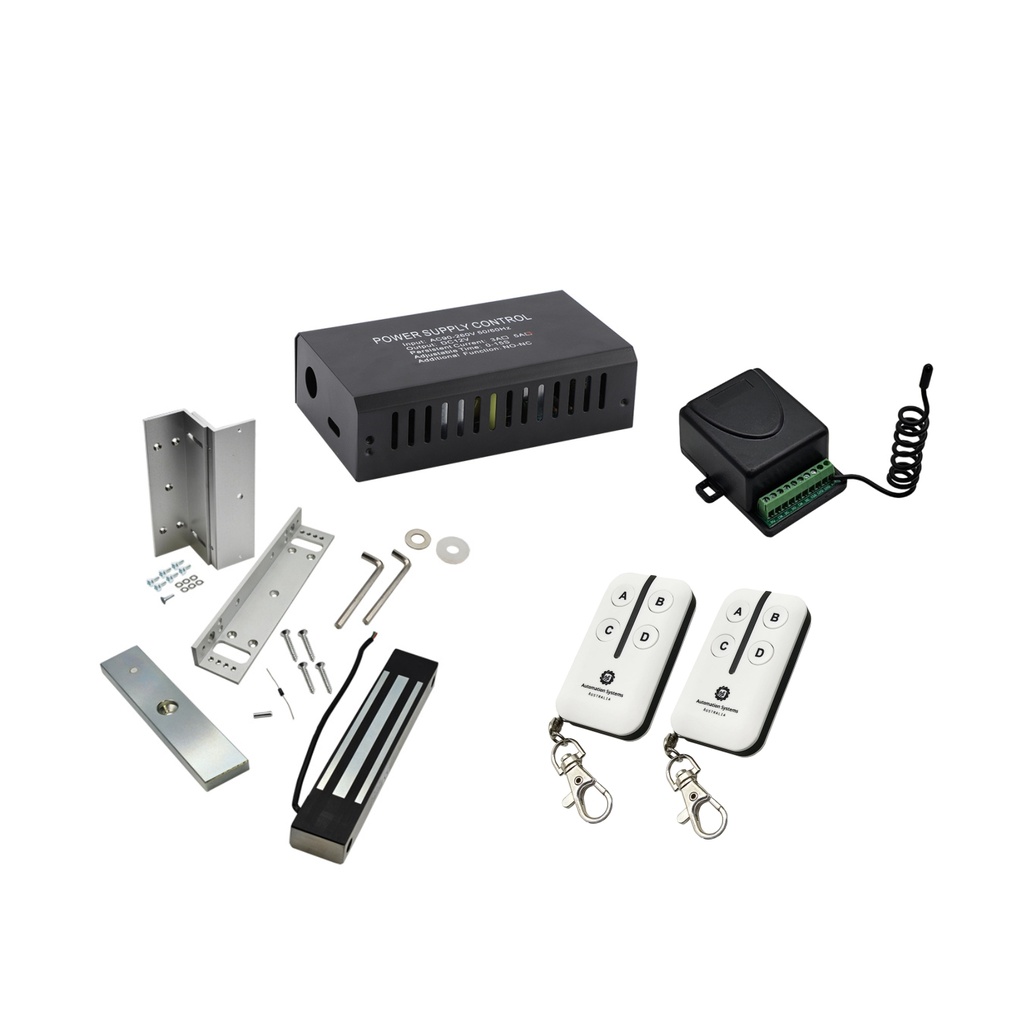

Remote Control Magnetic lock and Access Control Power Supply Combo

This lock control power supply only is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating. The lock itself however is for outdoor use.

280KG Waterproof Magnetic Lock (12/24V DC)

The Fortress ML Magnetic lock has a hold ability of 280KG when energized, it can be powered by 12V DC or 24V DC. Magnetic locks unlike solenoid based locks will released when commanded to unlock by the control system even whilst under load making a magnetic lock an excellent option for most applications.

✓ Suitable for Small and Large Gates
✓ Suitable for Single and Double Gates
✓ Provided with Both an L bracket for magnetic lock mounting and an adjustable Z bracket for the armature plate alignment

Magnetic Lock Specifications

Operating Voltage	12V/24V DC
Consuption	450mA(12V)/225mA(24V)
Body Size	222x42x26mm
Armature Plate Size	180x38x12mm

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Lock Control Power Supply

Automatic lock control power supply suitable for electric locks, magnetic locks, electric bolts, access control keypads, em card readers and alike. The lock control power supply can power devices continuously for a maximum of 1.5 Amps and with an allowance for a spike up to 3A (electric bolts and fail secure solenoid locks). Suitable for integration with intercom systems, access control systems, exit buttons and other devices with a voltage free relay contact into the exit button input OR devices with a momentary voltage output of 5-30V DC into the control input.

This lock control power supply is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating.

Access Control Power Supply Specifications

Input Voltage	90-260V AC
Output Voltage	12V DC
Accessories Constant Voltage Terminal	12V DC
Max Current	3A Momentary, 1.5A Continuous TOTAL
Supports Battery Backup	Yes, 12V DC
Lock Types	Fail Secure(NO)/Fail Safe (NC)
Exit Button Suport	Yes, Voltage Free N/O Momentary Contact
Exit Button Timing	Adjustable, 1-15 Seconds
Control Input	Yes, 5-30V DC Polarized
Operating Temperature	-10°-60°C
